Forgejo Actions Notification Development

Written by Christopher Besch, published on Thursday, 20th November, 2025

This article is about Forgejo, a code forge: Just like GitHub or GitLab it's a place to (collaboratively) develop software. I've already explained at length why we benefit greatly from Open-Source. Motivated by that concept, Forgejo's amazing community and perhaps because it's incredibly easy to set up, you select it for your private code forge. With your Forgejo instance up and running you might, however, miss a few features. I, for example, needed to receive email notifications and webhooks when a CI Workflow failed. Forgejo didn't offer that feature so I started contributing. You might find yourself in those shoes, too. In this article I want to help you on that journey and give my experience contributing to Forgejo. The parts that took the most effort where

setting up a development environment,
understanding Forgejo's layered architecture and pub-sub pattern,
actually implementing the features and
writing exhaustive tests.

Be aware that I'm describing all of this as of commit b2c4fc9f94 from 21st July 2025. Some of this information may be outdated by the time you read it.

Any Go Project's Directory Structure

Firstly we need to take a look behind Forgejo's pretty curtain: Forgejo uses Go for its backend. I've always found Go's module system illusive, especially its use of domains as module paths. Also, Go does a lot of things implicitly, for example: How do you tell Go that some function is a unit test? You place it in a file with the _test.go suffix. Or another one: How do you declare a symbol to be exported or not-exported (analogous to public or private in other languages)? There's no keyword for that. Instead, symbols with a leading capital letter are implicitly exported, otherwise not. Those things are hard to figure out if you haven't inhaled the Go docs and for the first time read through a project. Therefore, I want to quickly explain how Go handles dependencies. There also is an official generic explanation if you prefer that.

Okay, so, you find Forgejo's source code on codeberg.org/forgejo/forgejo. In this section we'll concern ourself with this subsection of Forgejo's files:

/
├── go.mod
├── main.go
├── cmd
│   └─ main.go
└── modules
    └─ log
       └─ init.go

Firstly, there are modules. A Go library is a module, a Go executable too. Typically one git repo houses a single Go module. Forgejo is a binary Go module with the module path forgejo.org. We can figure that out by looking at its go.mod file.

// /go.mod
module forgejo.org
// --snip--
require (
    // --snip--
    github.com/hashicorp/go-version v1.7.0
// --snip--
replace github.com/hashicorp/go-version => github.com/6543/go-version v1.3.1
// --snip--

We notice that Forgejo uses the github.com/hashicorp/go-version Go module. That's a dependency, which the Go tools will download directly from GitHub. We notice that Go uses a decentralized system for publishing modules: There isn't some central package index like NPM, crates.io or PyPI. Because Go identifies a module with these URL-like paths, you also need to use statements like import github.com/hashicorp/go-version to import the dependency. Consequently, Forgejo's code is full of domains where dependencies should be pulled from. And that really annoyed me at first. Do you really have to touch possibly hundreds of files only when the dependency's git repo changes? While I'm still not entirely onboard, I'm slowly warming up to this decentralized system; mainly because of the replace statement above. It states that while the Forgejo's Go source code will import github.com/hashicorp/go-version, the go tooling should download it from github.com/6543/go-version, instead. In this case Forgejo uses replace to switch to a fork.

As we've seen, Go code is grouped in modules but there's another level of granularity: packages. Go uses packages to isolate code into neat, contained, well, packages. Every Go file declares what package they are in. Go code can use exported and not-exported symbols inside its own package (i.e., functions, values, etc.). To use symbols in other packages, however, they must be exported and you need to import that other package.
The package main is special, that's where the entrypoint is. Take a look at Forgejo's main.go:

// /main.go
// --snip--
package main
import (
    // [standard library imports]
    "os"
    "runtime"
    // --snip--

    // [import some other package from the Forgejo source code repo]
    "forgejo.org/cmd"
// --snip--
)
// --snip--
func main() {
    // --snip--

Now, this is what really confused me at first: forgejo.org is a domain you can visit with your browser but that's more or less just a coincidence. Go only uses it to identify Forgejo's main package's path. Therefore, forgejo.org/cmd is not a web endpoint at all, even though it might look like one. Instead, it refers to the package cmd located in the /cmd directory.

// /cmd/main.go
// --snip--
package cmd

import (
    // --snip--
    "forgejo.org/modules/log"
    // --snip--
    "github.com/urfave/cli/v3"
// --snip--

And the forgejo.org/cmd package imports some more packages. When you read this, be aware of the to-be-imported package's location in the directory structure. The package lies in the /modules/log directory of the forgejo.org module, thus forgejo.org/modules/log refers to it. github.com/urfave/cli/v3, however, refers to a dependency Go will download from GitHub during a build. The imports look so similar but one is resolved locally and the other from the internet.
Notice that the Go files in the forgejo.org/modules/log package declare their package without its full path:

// /modules/log/init.go
// --snip--
package log
// --snip--

It only says log but the full package path required to import the package is forgejo.org/modules/log. Remember how the code's directory influences the package's path.

Forgejo's Layered Architecture

We have seen that packages can import each other. They import the functionality of those other packages but also their complexity. It is much easier to reason about a package that is as self-contained as possible, that doesn't import as many other packages. If every package imports every other package, the code-base turns into soup. Forgejo tackle this issue by introducing a layered architecture. It groups packages into layers and forbids packages from importing code in higher layers. I've drawn an overview over this structure:

/routers, /services, /models and /modules are some of the main directories where most of Forgejo's Go code lives. As we can see, there are three layers. Firstly, all code may access packages inside their respective main directory. The code in the bottom layer, however, doesn't have access to besides that. So for example, code in /modules may not access the Forgejo-specific database models defined in /models. (The Go compiler doesn't enforce this, code reviewers do.) This code in /modules could theoretically be used as a library outside of Forgejo and is, thus, highly encapsulated.
Thirdly, code in /services may access other code in /services and both the below /models and /modules but not the /routers above. The /services directory we find Forgejo's logic. It describes what should happen when something else happens.
Finally, the /routers code may use everything below it. Here reside Forgejo's input/output to the outside world, its API and web UI.

Naturally, we want as little code as possible in the upper layers because it is more difficult to reason about. After all it has access to so much stuff with so many effects and side-effects. This will become important when I talk about the refactoring my feature required.

Forgejo's Pub-Sub Pattern

We've seen how Go packages may import other Go packages. Now take a look at this situation where simple imports don't work:
forgejo.org/services/automerge imports forgejo.org/services/pull to check if a pull request is mergeable. But when there has been a pull request review, forgejo.org/services/automerge needs to realize that. Who knows there has been a pull request review? forgejo.org/services/pull of course. So one package needs the other and the other needs the one; a cyclical dependency. Simply importing the respective package doesn't work because Go forbids cyclical imports. What does work is importing a third package, forgejo.org/services/notify. forgejo.org/services/notify is a broker and relays messages grouped into topics to interested code. An example topic is PullRequestReview. forgejo.org/services/pull sends a message to that topic whenever there is a new review for a pull request. Because forgejo.org/services/automerge is interested in such messages, it creates a struct abiding by the Notifier interface. The notifier implements the PullRequestReview function and registers itself with the broker. Therefore the broker doesn't have to import the forgejo.org/services/automerge package. This is called dependency injection and resolves the cyclic dependency. Here is some example code:

// in /services/automerge
import notify_service "forgejo.org/services/notify"

// Define the notifier.
type automergeNotifier struct {
	notify_service.NullNotifier
}

// Ensure that this struct fulfills the Notifier interface.
var _ notify_service.Notifier = &automergeNotifier{}

// Declare functions for all topics the package is interested in.
func (n *automergeNotifier) PullRequestReview(/* --snip-- */) {
// --snip--

// Tell the broker there's a new notifier to be notified.
notify_service.RegisterNotifier(&automergeNotifier{})

// in /services/pull

// send a message to some topic
notify_service.PullRequestReview(/* --snip-- */)

Because code can publish messages and subscribe to topics, this pattern is called the pub-sub pattern. I find this pub-sub pattern pretty intuitive because topics and messages are a concept we're confronted with in our everyday lives. Additionally, it allows you to get a quick overview over what code is interested in what change. For example, if you give this interactive visualization a brief look, you can figure out that the code related to Forgejo packages is quite separate from everything else.

If you're interested in this visualization and what the commit history on the right has to do with it, take a look at my new article: The History of Forgejo's Pub-Sub Pattern.

My Contribution

Forgejo features Actions, enabling continuous integrations. One can configure an Action to compile or test code e.g., whenever there is a new commit or pull request. A failed Action Run indicates a problem with the just introduced code. Thus, the developer must change her code in this situation. But how does she notice something went amiss? Before my Contribution the only option was Forgejo's web UI. This is a pull notification because the developer must open the UI and pull the notification from the server. I desired push notifications in the form of email and webhooks. With email notifications the developer receives a friendly notice mail that her Action Run failed and a webhook sends a machine readable web request to some automated system. I wanted to develop those features. But where do you even start? Firstly, it makes sense to add a new topic to the pub-sub pattern, ActionRunNowDone. forgejo.org/services/mailer and forgejo.org/services/webhook are responsible for sending mails and webhooks so they should listen to that new topic. We only need something to send a message to that topic whenever an Action Run completes. forgejo.org/models/actions provides the database abstraction for Action Runs. It's UpdateRunJob function performs all changes including those indicating a completed Action Run. Therefore, that function should send the message. However, there's a problem: When we think back to Forgejo's layered architecture we realize that forgejo.org/models/actions is not allowed to import forgejo.org/services/notify, because it lies in a lower layer.

At this point I already compiled everything I figured out and planned to do into issue #3719. That gave Forgejo's maintainers the option to share their opinion. After all, perhaps I didn't understand Forgejo's structure well enough. It's better to find that out before spending hours implementing something no one needs.

PR #7510: Refactoring

This is where my first pull request comes in. I had to move some code from forgejo.org/models/actions up a layer into forgejo.org/services/actions. That's where Actions-related code lives that needs to import more things. In order to make my PR as easy to review (and approve) as possible, I tried to move as little code as was absolutely necessary. Of course, I had to move UpdateRunJob but e.g., CleanRepoScheduleTasks calls UpdateRunJob. If I had only moved UpdateRunJob, CleanRepoScheduleTasks would require an import of forgejo.org/services/actions. But that is, again, not possible because of the layered architecture. Therefore, I also had to move all the function transitively changing the Actions Run's status.

PR #7491: `ActionRunNowDone` Topic

Now UpdateRunJob calls the sendActionRunNowDoneNotificationIfNeeded function, which I just implemented. It sends a message to the new ActionRunNowDone topic whenever an Action Run is now done. Finally, I added a bunch of tests ensuring that in all cases the ActionRunNowDone topic is used.

PR #7509: Actions Done Mail

forgejo.org/services/mailer's notifier received interest in the ActionRunNowDone topic in this PR. I made it send out a mail whenever a Run failed or recovered (i.e., succeeded after a prior failure). Again, I added many tests ensuring whenever an ActionRunNowDone message requires it, a mail is sent.

#7508: Actions Done Webhook

In this PR forgejo.org/services/webhook got interested in the ActionRunNowDone topic, too. It sends out HTTP requests to the webhooks configured in the new settings.
For this I had to introduce the ActionRun struct, which allows serialising an action to be sent to the webhook. Of course, I added tests ensuring whenever an ActionRunNowDone message requires it, a webhook is sent.

`RepoActionRun` and `ActionRun` Structs

While I got #7508 merged, klausfyhn's #7699 extended Forgejo's API. The new API endpoints allow for retrieving Action Runs programmatically, which, of course, needed an ActionRun struct for serialisation. So his and my PR introduced the same struct at the same time and broke the main forgejo branch, ups. Earl Warren quickly resolved the merge conflict in #8066 by renaming #7699's struct to RepoActionRun. Then, because having two structs for the same purpose is bad, he removed the RepoActionRun, leaving only ActionRun in #8250. Both the webhook and the API use the same struct now.

Other PRs

A few more PRs accompanied this feature, which I won't get into detail:

#7697: After the Fact Cleanup
#8227: (Earl Warren) Only single user receives mail
#8242: (Earl Warren) actions mail opt-in

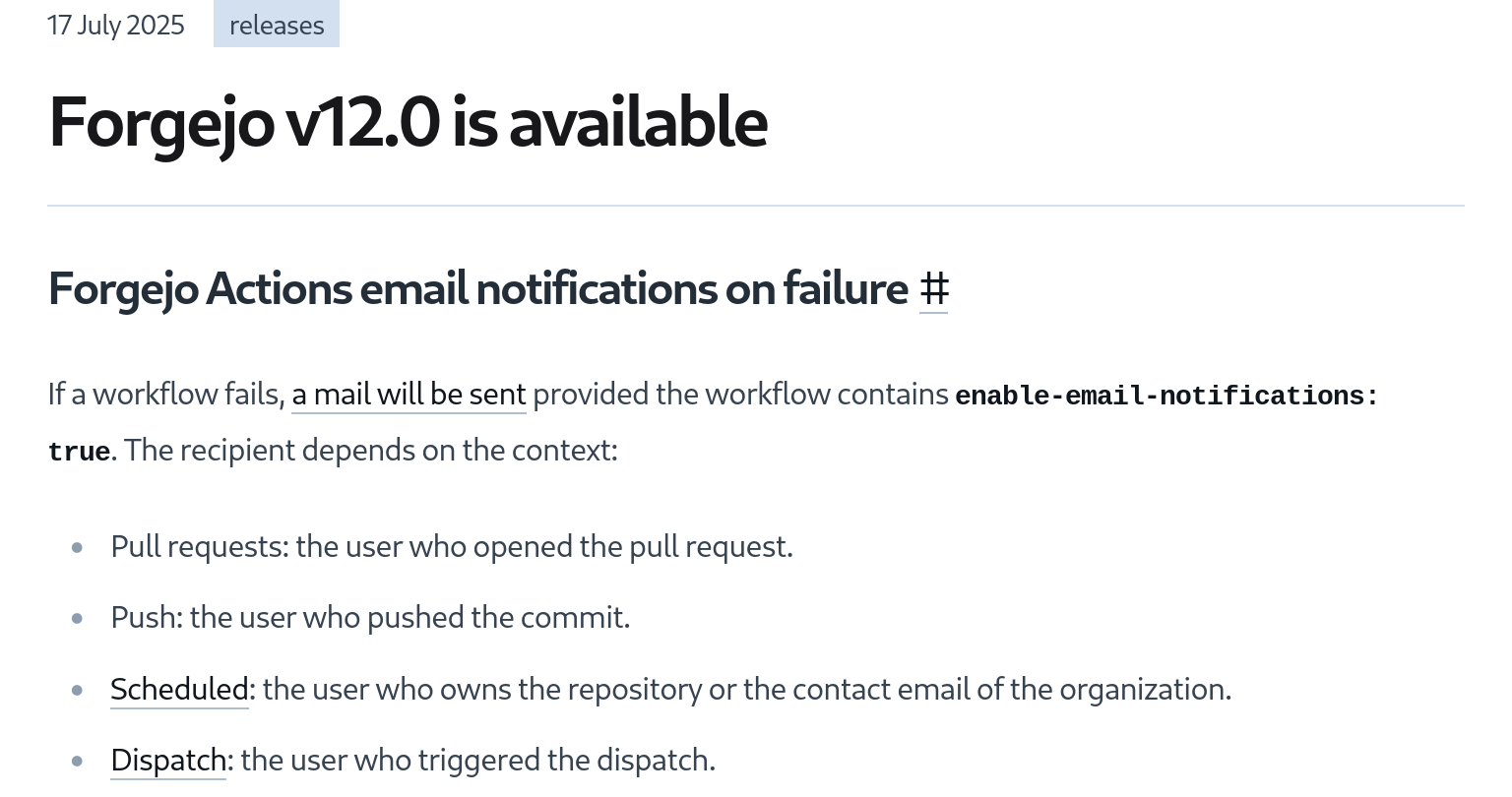

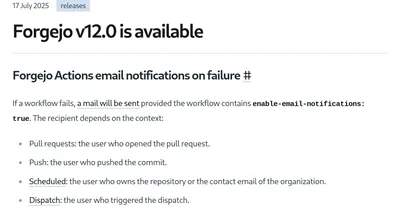

With all that work done, Action notification got into the v12.0 release of Forgejo! You can go back up to the visualization and see if you can find my PRs. And because I got my features upstreamed into Forgejo, Forgejo's maintainers take care of it now. I don't have to maintain my own custom fork. Having your features upstreamed really is the best thing that could happen to you.

Development Setup

Here I want to give an in-depth technical explanation of my development setup. After all, I quickly got into the situation where I changed some of Forgejo's code and wanted to test it. For this I don't just need the Forgejo executable. No, I also need an action runner, a mail server and some place to send webhooks to.

Forgejo itself

Let's start with just getting a Forgejo test instance up and running.

I use Debian but this setup should work on all Linux distros (and maybe macOS and BSD?).
Install node and npm.
Install go.
Install gotestsum. This is entirely optional. If you don't install gotestsum, ignore all the USE_GOTESTSUM=yes statements below.
Download the Forgejo repo with git clone https://codeberg.org/forgejo/forgejo ~/forgejo && cd ~/forgejo.
Build an executable with STRIP="0" EXTRA_GOFLAGS='-gcflags="all=-N -l"' TAGS="sqlite sqlite_unlock_notify" make build. It took me a while to realize that go build enables optimization by default but keeps all debug symbols present. We change that with the gsflags by neither optimizing or inlining. Furthermore, Forgejo's Makefile strips the debug symbols so we disable that with the STRIP environment variable.
Run ./gitea. Yes, the executable is still called that.
Open a webbrowser and navigate to http://localhost:3000.
Choose SQLite, create an admin account and keep everything else default. Your config is in ~/forgejo/custom/conf/app.ini.
Create the test_repo repository and add the file .forgejo/workflows/main.yml:
```
enable-email-notifications: true
on:
  workflow_dispatch:

jobs:
  test:
    runs-on: self-hosted
    steps:
      - name: Echo
        run: |
          echo Hello World!
      - name: Fail
        run: |
          false
```
You can make your life a little easier by cloning the repo: git clone http://localhost:3000/chris_admin/test_repo.git ~forgejo_test_repo. You'll have to follow the prompts and configure your user.email and user.name. I'm using password login, btw.

Forgejo Runner

To test a workflow I need a runner.

Download the Forgejo runner binary into ~/forgejo_runner.
Register the runner with ./forgejo-runner-11.1.2-linux-amd64 register, give the instance URL http://localhost:3000, the runner token you get from the repo settings in the web interface, choose a name like test-runner and select the label self-hosted:host.
Run ./forgejo-runner-11.1.2-linux-amd64 daemon and click the workflow trigger button in the web interface. You should see your workflow run now.

Mail Server

Okay, that works fine but we also want to test sending emails. I use MailDev to create a development email server. It provides an SMTP server, which Forgejo connects to, and a web interface for me, the developer.

Install Docker.
Run docker run --network host -p 1080:1080 -p 1025:1025 maildev/maildev.
Open http://localhost:1080 in a webbrowser.

Shutdown Forgejo and edit it's config (in ~/forgejo/custom/conf/app.ini).

[mailer]
ENABLED = true
PROTOCOL = smtp
SMTP_ADDR = localhost
SMTP_PORT = 1025
FROM = forgejo@localhost

# make sure this is true
[service]
ENABLE_NOTIFY_MAIL = true

Now, when the workflow fails you should receive a mail in the MailDev web interface.

Webhook

Furthermore, we want to test webhooks.

I'm using this node script as a test webhook: webhook_tester.js:

#!/usr/bin/env node

const http = require("http");

const hostname = "0.0.0.0";
const port = 8001;

const server = http.createServer((req, res) => {
  console.log(`\n${req.method} ${req.url}`);
  console.log(req.headers);

  req.on("data", function(chunk) {
    console.log("BODY: " + chunk);
  });

  res.statusCode = 200;
  res.setHeader("Content-Type", "text/plain");
  res.end("Hello World\n");
});

server.listen(port, hostname, () => {
  console.log(`Server running at http://localhost:${port}/`);
});

Run ./webhook_tester.js.
Shutdown Forgejo and edit it's config (in ~/forgejo/custom/conf/app.ini). For Forgejo to accept http://localhost:8001 as a webhook target you need to add this:
```
[webhook]
ALLOWED_HOST_LIST = *
SKIP_TLS_VERIFY = true
```

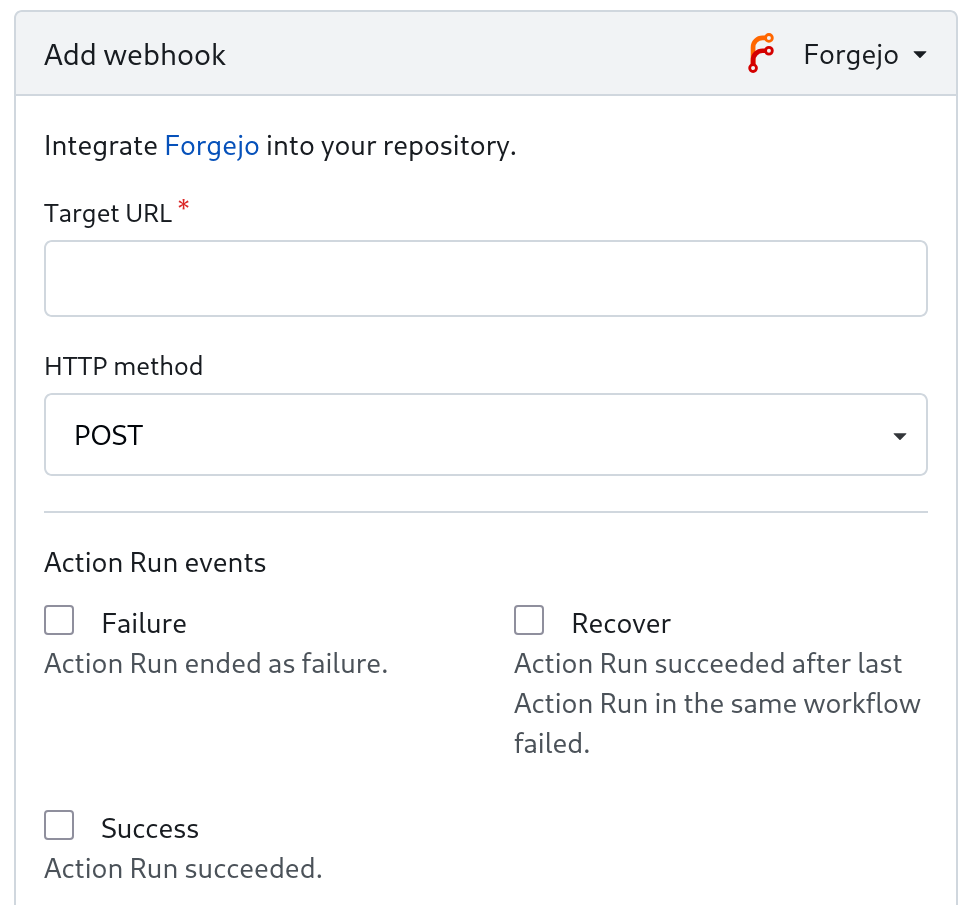

Create a new webhook in the Repo Settings and use the target URL http://localhost:8001. Enable either All events or Custom events, selecting the Action Run events.
Start the workflow, let it fail and watch the sent webhook in the node terminal.

Now we have everything to play with the features I implemented. Notice that many of the settings I showed you are awfully insecure for a productive deployment. They just make things easier for development.

Running Tests

Forgejo has many different types of tests. I was concerned with these types.

Run all unit tests with TAGS='sqlite sqlite_unlock_notify' USE_GOTESTSUM=yes make test.
Run all integration tests with TAGS='sqlite sqlite_unlock_notify' USE_GOTESTSUM=yes make test-sqlite.

Say you only want to run this unit test in ~/forgejo/models/actions/run_test.go:

func TestGetRunBefore(t *testing.T) {
  // --snip--
}

Then you can execute USE_GOTESTSUM=yes TAGS='sqlite sqlite_unlock_notify' GO_TEST_PACKAGES='forgejo.org/models/actions' make 'test#TestGetRunBefore'. But what if, instead, you are concerned with this integration test in ~/forgejo/tests/integration/actions_notifications_test.go:

func TestActionNotifications(t *testing.T) {
  // --snip--
}

Then you can run USE_GOTESTSUM=yes TAGS='sqlite sqlite_unlock_notify' make 'test-sqlite#TestActionNotifications'. Btw, there are other types of tests, namely frontend tests and the End-to-End tests in a special repo. I didn't work with these yet so I direct you to the testing docs.

Debugging

I like the terminal and am used to GDB. Therefore, I'm using the terminal debugger Delve. Let's set things up for that:

Install Delve.
Build Forgejo as described above.
Run dlv exec ./gitea.
Now we can use the Delve console while Forgejo runs, letting you interact with the web interface. For example you can do break forgejo.org/services/mailer.(*mailNotifier).ActionRunNowDone, break forgejo.org/services/notify.ActionRunNowDone and continue. Hit Ctrl+C to enter a Delve command and type quit to exit.

Say you want to debug the above unit test. Then you can use Delve with this command: dlv test --build-flags "-tags='sqlite,sqlite_unlock_notify' -run TestGetRunBefore" forgejo.org/models/actions. If, instead, you want to debug the above integration test, run make integrations.sqlite.test generate-ini-sqlite && GITEA_ROOT="$(pwd)" GITEA_CONF=tests/sqlite.ini dlv exec ./integrations.sqlite.test -- -test.run TestActionNotifications. Here you can break on some line number, too: break ./tests/integration/actions_notifications_test.go:22 To debug something else, take a look at Forgejo's Makefile and find what command make the things you want to debug run. Just replace go test with delve and place all go test arguments in the --build_flags Delve argument. You can break on line numbers, too: break ./models/actions/run_test.go:19

Conclusion and Lessons Learned

We've seen the structure of any Go project, Forgejos layered architecture and pub-sub pattern, how I contributed and with what development setup. Now I understand better just how valuable a deep understanding of the project you're working on is. This really allows you to make the least invasive change to the code and still implement your feature. And a smaller change is much easier to understand, review and approve. We all benefit from that. Breaking things up into multiple PRs goes along nicely with that, too. Furthermore and even though I didn't go in-depth in this article, I spent a lot of time writing tests. Those tests are really important and not just a side-gig you slap onto the "real" code. They enable the maintainers to check things still work as they should when new code comes along and you might have left the project.

And lastly, of course, the Forgejo maintainers are absolutely amazing. Especially Earl Warren did a lovely job helping me on my journey. Thank you!

P.S.

I created the talk Contributing to Forgejo around this article.
