Installing Gentoo To My Liking

Written by Christopher Besch, published on Tuesday, April 26, 2022

Gentoo is a Linux distribution that offers as many options as possible. While its package manager Portage leverages the heavy lifting, you have to deal with the choosing such freedom entails: What init system causes the least amount of pain with the software you intend to run, what desktop suits your personal style and which display manager goes best with that?

I've setup Gentoo countless times with different decisions along the way. While dysfunctional combinations butchered some of those installations beyond repair, others became my daily driver for weeks and months. In the end I might not have become an expert but I surely did learn a lot during this endeavour. So this opinionated article documents said endeavour, all choices I made, any problems I encountered and their subsequent solutions.

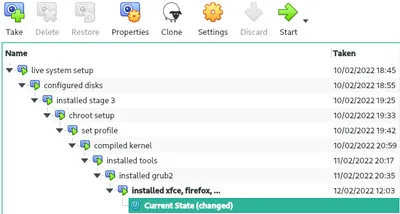

If you decide to try Gentoo for yourself, I'd recommend doing so in a virtual machine instead of directly on your hardware. VMs allow you to save snapshots before each step. Thus when you screw something up—and trust me you will—you can simply go back. Please don't write me any angry emails after you accidentally deleted your family photos lacking a backup ;)

Table of Contents

Choices Along the Way

The Gentoo Handbook (AMD64) is such a great tutorial that there is basically nothing left for me to add. Instead I'll go through the decisions leading to a system of my liking. If a choice is not explained, I chose the default or non-extra option as explained in the handbook. When you stumble upon some concepts you are unfamiliar with, you should take a look at the handbook or Gentoo wiki. I should also add that the choices available to you and my opinion change with time. In a few years this article may very well mostly consist of outdated information, so make sure to always consult up-to-date references, like the Gentoo Handbook.

Installing Gentoo

GPT, UEFI vs. MBR, Legacy BIOS

There are two different ways of partitioning your disk, GPT and MBR. They are closely tied to the two boot process types, UEFI and legacy BIOS. The handbook explains the differences more closely so I'll leave it at stating that I used the modern GPT, UEFI option.

fstab

The /etc/fstab file defines what partitions should be mounted where and how. This is explained in later chapters of the handbook.

To address a partition you can choose between filesystem labels and UUIDs. While labels like /dev/sdb3 are easier to comprehend than UUIDs (e.g. 0b04fdcc-6d7f-4a88-bf57-1c2965bf8ceb), UUIDs are a lot less risky. This is because labels are defined by the order the devices get detected by the kernel. And this order can change, for example when adding or replacing disks. UUIDs on the other hand don't change.

To convert labels to UUIDs you can use the blkid command like this:

~ λ blkid
/dev/sdb1: UUID="A76D-24D1" [...]
/dev/sdb2: UUID="c8211424-0c21-4eec-aa92-9cc4a9c043bf" [...]
/dev/sdb3: UUID="0b04fdcc-6d7f-4a88-bf57-1c2965bf8ceb" [...]
[...]

So my fstab looks like this:

UUID=A76D-24D1                            /boot vfat defaults,noatime 0 2
UUID=c8211424-0c21-4eec-aa92-9cc4a9c043bf none  swap sw               0 0
UUID=0b04fdcc-6d7f-4a88-bf57-1c2965bf8ceb /     ext4 noatime          0 1

systemd

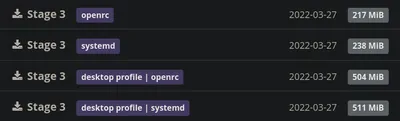

To install the operating system, a few tools need to be available. These are the first things your soon to be Linux installation gets to consist out of, or in other words its primordial soup. This primordial soup, correctly called stage 3, comes in a few varieties:

I want a system with a desktop, so I chose the appropriate desktop profile. And then there's the matter of the init system.

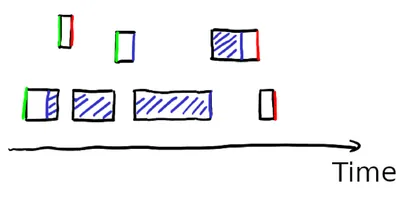

On Linux the init system is the first program that starts once the kernel has booted up. With Gentoo you can use whatever init system you like but the usual options are OpenRC and systemd. OpenRC is Gentoo's default. When you choose to use systemd, you should read the systemd article.

I'm used to systemd and wanted to try something non-default so I went with that on my final installation. In my experience the handbook makes a good job at explaining what you have to do differently when using systemd. The only thing I noticed to be missing was the NTP to synchronize your clock sudo timedatectl set-ntp true—something you realize very quickly when daylight saving starts. So you should nevertheless refer to the systemd article.

genkernel and GRUB 2

At some point you have to decide how you intend to install the Linux kernel. My first attempts used the manual configuration, which always caused trouble but would theoretically result in a very clean build. On my final installation I ended up using the much simpler to use genkernel, with which I had no problems whatsoever.

Once the kernel is installed and a few other steps in the handbook have been traversed, you get to the stage of choosing a bootloader. The bootloader is the piece of software starting the kernel after the power button has been pressed. As described in the systemd article it is crucial to edit /etc/default/grub and add this line:

[...]
# Append parameters to the linux kernel command line
GRUB_CMDLINE_LINUX="init=/lib/systemd/systemd"
[...]

Otherwise the kernel wouldn't launch systemd and leave you stranded on a black screen with a kernel panic.

I also have to add this to my /etc/portage/make.conf before emerging sys-boot/grub because I'm using the UEFI boot process.

[...]
GRUB_PLATFORMS="efi-64"
[...]

os-prober

Because I enjoy playing games from time to time, Windows still does a better job at that and I like separating work and play, I'm running a Gentoo-Windows dual boot. To be prompted at every boot which OS you want to endure at the moment, you need os-prober. You can install it with emerge --ask sys-boot/os-prober and have to enable it in /etc/default/grub:

[...]
GRUB_DISABLE_OS_PROBER=false
[...]

os-prober doesn't run at every boot, instead it only looks for any other bootable partitions when you grub-mkconfig -o /boot/grub/grub.cfg and makes grub aware of them.

Interjection: Installing with Portage

On Gentoo the Portage package manager takes care of compiling, installing, cataloging, uninstalling of programs and much much more. The slang word for installing something with Portage is to emerge that package. You can emerge a package with emerge --ask [package name]. Package names look like this: media-gfx/gimp, a category and the name of the program. Sometimes this command prompts you to set some USE flags. These can either be set in /etc/portage/make.conf to affect all packages or in /etc/portage/package.use to not alter the global USE flags. My make.conf and package.use can be found in my config collection under the Gentoo section.

Xfce

I use the terminal emulator for everything. Usually nothing graphical, besides it and Firefox, is running. So my focus lies entirely on making the terminal as pleasant and efficient to use as possible. Therefore I'm using the most lightweight and least painful desktop environment I could find, Xfce. Out of the box it doesn't look as fancy as your average r/unixporn post but you can tailor it to your liking—which I promptly didn't do.

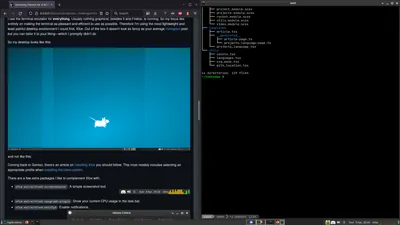

So my desktop looks as basic as you can get:

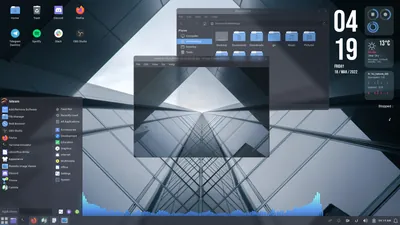

But if pretty graphics are your cup of tee, take a look at what u/linuxscoop managed to do with Xfce:

Coming back to Gentoo, there's an article on installing Xfce you should follow. This most notably includes selecting an appropriate profile when installing the base system.

There are a few extra packages I like to complement Xfce with.

  • xfce-extra/xfce4-screenshooter: A simple screenshot tool.
  • xfce-extra/xfce4-cpugraph-plugin: Show your current CPU usage in the task bar.
  • xfce-extra/xfce4-notifyd: Enable notifications.

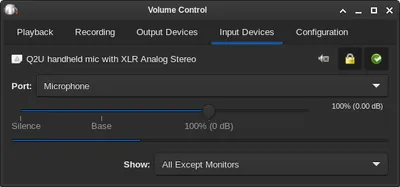

  • media-sound/pavucontrol: Allow for more fine grained control over your audio devices.
  • media-fonts/fonts-meta: Install non-Latin character set.
  • media-fonts/noto-emoji: Install emojis.

Since I use VI as my editor, which requires pressing Escape very often and I never understood why anyone would want to use Caps Lock, I bind my Caps Lock key to Escape. On a system using Xorg, which mine is, this can be achieved using an .Xmodmap file in your home directory:

! make caps key perform escape action
remove Lock = Caps_Lock
keysym Caps_Lock = Escape

It is part of my config collection.

SDDM

Without a display manager your newly booted up system presents you only with a terminal—even when Xfce is installed. To give you a graphical login prompt and launch Xfce, you need something like SDDM. It is one of many display managers out there. Feel free to play around with other options, SDDM is only the first one I tried and that fulfills all my simple needs. (Don't forget to activate its daemon with systemctl enable sddm.service.)

To set the keyboard layout for the login screen—what Xfce calls it's "system defaults"—you have to create the /usr/share/sddm/scripts/Xsetup script.

This sets it to the UK keyboard layout:

#!/bin/sh
# Xsetup - run as root before the login dialog appears
setxkbmap "gb"

setxkbmap is a command you have to install first with emerge --ask x11-apps/setxkbmap.

Wi-Fi

When you only use Ethernet, you can simply install dhcpcd (among other). If you instead rely on Wi-Fi, you should use NetworkManager.

The installation is described here; this paragraph only summarizes the most important steps. You have to enable the networkmanager and wifi USE flags, update your system using emerge --ask --changed-use --deep @world and install NetworkManager emerge --ask net-misc/networkmanager. A really useful but not mandatory addition is gnome-extra/nm-applet. It offers a graphical interface for connecting to networks.

Programs I Use

Installing software on Gentoo is often as simple as emerging the appropriate package. For me this means installing:

  • app-admin/keepass: A local password manager.
  • net-im/discord-bin: A chat program everyone uses and hates at the same time.
  • app-text/tree: A convenient way of displaying folder structures in the terminal.
  • app-text/pdftk: A ToolKit for handling PDFs in the terminal.
  • media-gfx/gimp: The GNU Image Manipulation Program.
  • app-text/pdfgrep: Searching in PDFs with the familiar GREP syntax.
  • sys-apps/exa: A colourful replacement for ls.
  • app-editors/vim: Quite useful when you don't want to go through the hassle of installing Lunarvim during setup.
  • app-portage/gentoolkit: A few useful tools for working with Portage.
  • app-portage/genlop: Estimate compilation time with Portage.
  • media-video/vlc: You've got some obscure media format to play? VLC can handle it.
  • sys-process/time: Display resources used by a program.

What follows are a few more programs with more complicated installations.

Kitty

My terminal emulator of choice is Kitty, mainly because it supports displaying images directly in the terminal. Unfortunately you have to jump through a few hoops to install it on Gentoo, because it's still in the testing branch. Refer to the Kitty on Gentoo article for installation instructions. To be able to show images in the terminal, you also have to install media-gfx/imagemagick. My kitty config is also part of my config collection.

Lunarvim

Lunarvim forms a configuration layer on top of Neovim and is the text editor I used for writing this article. Neovim, in turn, is a fork of vim, which is the improved of version of vi.

Lunarvim has a few requirements:

  • sys-apps/fd
  • x11-misc/xclip
  • Neovim latest

The last one is a problem since the version Portage supplies is too old so you have to compile Neovim yourself. After Lunarvim has been installed, you can copy my config, which, again, can be found in my config collection.

Noisetorch

I spend a lot of time in voice calls so good noise suppression is absolutely vital. Noisetorch does a good job at that and filters out my hammering on the keyboard while leaving my voice untouched. To install it you have to extract a tarball in your home directory. This is explained here.

Git

[video removed from print]

To make git work the way you're used to, you need two packages:

  • dev-vcs/git
  • app-shells/bash-completion

The second one is required to give bash the ability to autocomplete, as you can see in the video.

LaTeX

On Gentoo, the TeX Live compiler lives in the app-text/texlive package. You should take a look at its USE flags as you might need some of them for your particular document. I simply include them all with line app-text/texlive * in my package.use.

OCRmyPDF

OCRmyPDF is a Python program that uses Tesseract to convert scanned PDFs to text and make them searchable with Ctrl+F. On Gentoo you need these two packages

  • app-text/tesseract
  • media-gfx/pngquant

and have to install OCRmyPDF itself using python3 -m pip install

Tesseract comes with only the English language pack by default. As described here you have to set the L10N use extension in your make.conf to install more. This for example lets you convert German and English PDFs.

L10N="en de"

This use extension is respected by many packages to install language specific features, not just by Tesseract.

OBS Studio

OBS Studio is a very convenient way of recording your screen. It can be installed using Portage, but similar to Kitty, OBS Studio is as of writing this article in the testing branch. So you have to install it using emerge --ask --autounmask=y --autounmask-write media-video/obs-studio.

Firefox

You have two main ways of installing Firefox, www-client/firefox to compile it from source and the precompiled www-client/firefox-bin. I chose the latter, binary version as Firefox receives very frequent updates and compiling a browser always takes a lot of time. Incidentally this is the only program I don't compile from source.

I like using these extensions:

What I also like doing is splitting the address and search bar.

Then you can remove search results from the address bar and not leak any urls to your search provider. You can do so in the about:config page.

QEMU and Virt-manager

After a friend made me aware of the huge performance increase KVM (Kernel-based Virtual Machine) entails, I switched to QEMU with the Virt-manager frontend. And I can confirm, it is much faster than VirtualBox, which I've used before—something around 85% native performance with my crude benchmarks. To install it you should read the QEMU and Virt-manager articles for Gentoo. Only make sure to add this to your make.conf:

USE="spice usb usbredir"
QEMU_SOFTMMU_TARGETS="x86_64"

Node.js

I need Node.js for my homepage but ran into an error message complaining about the node-inspector being missing (ERR_INSPECTOR_NOT_AVAILABLE). To fix this, you have to add the inspector USE flag for the net-libs/nodejs package.

Disabling the PC Speaker

I ran into the weird problem that my pc speaker, that squeaky little piezo thing, just didn't shut up and constantly annoyed me when I mistyped a command or hit some unbound key in Firefox. A sustainable solution to this problem is to disable the appropriate kernel module by creating the file /etc/modprobe.d/blacklist.conf and writing this line:

blacklist pcspkr

Wrapping Up

Config Collection

As you might have noticed I very often referred to my config collection. While I won't always keep this article up-to-date, this GitHub repository will always reflect the configs I'm using at the time. What exactly it contains is listed in its README.md.

Cheat Sheet

Take a look at the official cheat sheet.

  • install package: emerge --ask [package name]
  • update system repository: emerge --sync
  • propagate USE flag changes: emerge --ask --update --changed-use --deep @world, emerge --ask --depclean
  • uninstall package: emerge --deselect [package name], emerge --ask --depclean

What Remains

There are quite a few more things I would have liked to try but didn't get to. This includes Bluetooth support and compiling packages on multiple machines using distcc. But this article already took long enough so I'll leave it at that.

Even though installing Gentoo was incredibly tiresome and painful, I learned a lot about Linux and am more content with my current operating system than ever before. Sometimes you just have to endure some pain to reach heaven.

Thanks for sticking around and I wish you a splendid day!
