A good friend of mine and I wanted to play a game, Saints Row: The Third. The game supports LAN co-op but we live far apart. And the online co-op doesn't work on the GOG version because it requires Steam servers. That's not an option for us because we want to play the game DRM-free.
Clearly the natural reaction is to try LAN co-op on a VPN. I set up a WireGuard server on a VPS and created configs for the tunnel IPs 10.13.13.2, 10.13.13.3 and so on. My friend and I each pick a tunnel IP and connect through this VPN. Like this we can securely reach each others PCs across the Internet. But for our game this didn't work; let me explain why:

The WireGuard Despair

LAN co-op games typically work in two stages:

1. hosting a game lobby on one PC and joining it on the other (also called matchmaking) and
2. playing the actual game.

During the second part, during the actual gameplay, the hosts exchange the current state of the game, i.e., what player is where and what do they do. The game implements this using UDP unicast datagrams. This is the typical way UDP is used on the Internet; every datagram has a source IP and a destination IP and reaches only the host with that destination IP.
The first part of the game, hosting and joining a lobby cannot rely on unicasts because each host doesn't know the IP of the other host. Other games allow directly entering the IP of the PC hosting the lobby. Saints Row: The Third annoyingly does not. Instead, it relies on UDP broadcasts. A UDP broadcast is a UDP datagram sent not to a single IP but to 255.255.255.255, the broadcast address. They are implemented using Ethernet broadcasts, which send the datagram to all hosts on the same subnet. That bit is crucial: same subnet. This doesn't work on the Internet, because there is more than one subnet on the Internet (it's what makes the Internet the Inter-net). Flooding the entire Internet with UDP broadcasts would not be handleable so there's no such broadcast with IP, only with Ethernet.
Okay, why does this cause a problem with our game? My friend and I are connected to the same WireGuard VPN, after all. As it turns out, there are different types of VPN: layer 2 (link-layer) and layer 3 (network-layer) VPNs. A layer 3 VPN works by tunneling IP datagrams. Importantly, this doesn't include the Ethernet header: Layer 3 VPNs have no understanding of Ethernet, which ip address show reveals in figure 1. There is no MAC address associated with WireGuard's peer1 link, only an IP address, 10.13.13.2.

Figure 1: Investigating a WireGuard connection with ip address show.

A layer 2 VPN is different (and also much rarer). Such a VPN bridges entire Ethernet frames through the VPN; it doesn't just tunnel IP datagrams. (On Linux a layer 2 VPN uses tap devices and layer 3 VPNS tun devices.) WireGuard isn't capable of layer 2 bridging. OpenVPN with it's bridge mode, however, is. Though, a layer 2 VPN like OpenVPN in bridge mode is much more complicated to set up. So, with WireGuard games with LAN co-op without a direct IP option don't work.

Investigating the Matchmaking Process

OpenVPN bridged mode was too complex for us to setup so instead, I started investigating the matchmaking process using Wireshark. Surprisingly, hosting a lobby doesn't send out anything at all! Instead, scanning for lobbies does, as figure 2 shows.

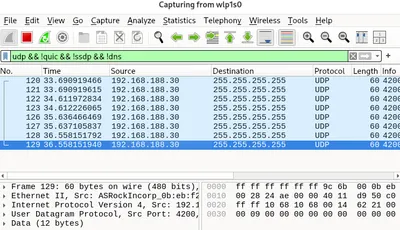

Figure 2: Scanning for game lobbies using UDP broadcasts.

There are two different broadcasts sent out, each four times. These broadcasts are the same no mater what device hosts the game. You can reproduce these broadcasts with socat:

echo "0000ffff0005000c00000000" | xxd -r -p | socat -u - UDP-DATAGRAM:255.255.255.255:4200,broadcast,bind=0.0.0.0:4200
echo "0000ffff0005000900000000" | xxd -r -p | socat -u - UDP-DATAGRAM:255.255.255.255:4200,broadcast,bind=0.0.0.0:4200
# Repeat both three more times.

Do notice that these commands don't work on the same device because the game already binds to port 4200. Because of that I run them on a separate device on my LAN.
Fun fact: when some other application already binds to port 4200, Saints Row: The Third's matchmaking simply doesn't work without any errors. What great software engineering...

Now I can set the game to host a game lobby, send the canned UDP broadcast and see what happens, see figure 3.

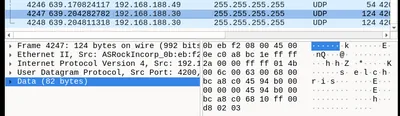

Figure 3: The game's response to the canned UDP broadcast (lobby scan).

As you can see, the ASCII decoding of the datagram reads s e l c h r i s , which represents the lobby's hostname, selchris but using shorts rather than chars. Different to the lobby scan datagram, the scan response datagram, therefore, differs from one host to the next. The game, again, sends out the same datagram multiple times. I presume this is because UDP, as opposed to TCP, isn't a reliable means of transmission. Any one datagram may be dropped so you send them multiple times and hope at least one gets through. Now I can reproduce the scan response datagram as well with socat:

echo "0000ffff014b000c00000000730065006c006300680072006900730000001ebca8c04594b0000606100102000000000000004594b00006061001000000001ebca8c06810ff00000000000000000000d80203" | xxd -r -p | socat -u - UDP-DATAGRAM:255.255.255.255:4200,broadcast,bind=0.0.0.0:4200

With that I can turn our setup around and let the game search for lobbies. This sends out the UDP broadcasts and I respond with socat, sending our canned lobby scan response. And...it works! The game lists my fake game lobby, see figure 4.

Figure 4: The lobby scan showing my faked lobby.

However, the scanning host doesn't appear to send out anything after selecting the faked lobby. Later I got another PC I could run the game on, setup a proper LAN co-op game and traced it with Wireshark (see figure 5). It turns out that you simply have to do the scanning-responding cycle multiple times. Once both hosts know the other sides IP, they switch to UDP unicasts, see the highlighted datagram in figure 5. After all, they don't want to annoy anyone else on the network more than necessary. And the rest of the LAN co-op gameplay uses only UDP unicasts.

Figure 5: Wireshark showing the switch to UDP unicast after the broadcasts during matchmaking.

Binding to Ports the sudo Way

With this knowledge I set out to implement a UDP broadcast relay. The idea is simple: Have a separate process listen for UDP broadcast datagrams and forward them through the WireGuard tunnel. This, of course, needs to run on both hosts, because both hosts send UDP broadcasts.
I initially thought I had to implement a third process on each end that receives the datagram through WireGuard and turns it back into a UDP broadcast. But as it turns out the game doesn't require the above messages to be broadcasts at all. As long as the game receives them on the right port, be it via unicast or broadcast, it's fine.
So I implemented a single Python script proxying UDP broadcasts into the WireGuard tunnel. I use the BSD socket interface, which Python exposes through its socket package. It works on Linux, Windows and more. You'll find my script in the end of the article.

Before that, though, I want to write about another challenge I had to overcome: with my socat experiments I had two hosts: one running the game and the other injecting the UDP broadcasts. I want to have both the Python script and the game running on the same host. I need to

1. receive the UDP broadcasts on port 4200. As I've already stated, the game already binds to port 4200 on the LAN IP. It needs to send and receive UDP broadcasts after all. With the typical socket type SOCK_DGRAM I'd also have to bind to port 4200 on the host's LAN IP (in my case 192.168.188.49). Under normal circumstances this is not allowed so I cannot use SOCK_DGRAM here.
2. Secondly, I need to send UDP datagrams through the tunnel. With SOCK_DGRAM I'd have to bind to port 4200 on the tunnel's IP (in my case 10.13.13.2). While this would work during the matchmaking phase, once the actual gameplay starts, the game uses unicast UDP to talk to the other instance across the tunnel. And the game uses port 4200 for unicast datagrams, also. Because of that, the games will bind itself to port 4200 on the tunnel IP once the matchmaking process is complete. Having two processes bound to the same port on the same IP address (under normal circumstances) isn't allowed so I can't use SOCK_DGRAM here, either.

What do you do? SOCK_RAW comes to the rescue. This socket type combined with the SOCK_DGRAM protocol allows receiving any UDP datagrams on all interfaces regardless of their port. And the best part: you don't have to bind at all. Such power is of course very dangerous as you can sniff on other processes' traffic with it. Therefore, you need CAP_NET_RAW or root / administrator privileges. Additionally, a SOCK_RAW socket may send and receive on all interfaces and from any IP address. Hence, I can use the same socket for both receiving broadcasts and proxying their payload into the tunnel. Also, do notice that I need to send raw IP datagrams. I cannot use the kernel's IP and UDP implementation but need to use something else. scapy is a Python library for just that. I use it to build IP datagram to my liking. Afterwards I send the same datagram to all hosts on the other side of the tunnel. My script simply uses a loop over a list of IP addresses.

Mangling the Payload

With that simple UDP proxy script running on both hosts the game successfully finds the game lobby and attempts to connect! Success! But I wasn't done here: this is where the UDP unicast datagrams begin. And I thought the game would use the source IP address used in scan response broadcast to select the destination IP addresses for the unicasts. That turns out to be wrong! Checking with Wireshark, the lobby joining host tries to connect to the other host through lobbies LAN IP. That's the original IP address of the scan response broadcast. How could the game know this IP after we've proxied the broadcast datagram and, thus, changed the source IP to the tunnel's IP? A closer look at the scan response broadcast, see figure 6, gives the answer.

Figure 6: A closer inspection of the scan response. Notice how the highlighted parts repeat. The blue highlight represents the source IP address in the IP header. The red highlight represents parts of the UDP payload.

The UDP payload contains the LAN IP! Twice! In little endian, which the reversed of the network byte order (big endian). That explains why all the bytes are the other way around in the payload compared to the IP header. That little snitch!
Okay, so SOCK_RAW with sudo wasn't enough for our game; we also need to mangle the payload's response. The simplest approach for this is to replace all occurrences of the LAN IP in the payload with the tunnel's IP. With that last addition, it works! We can finally play Saints Row: The Third over a WireGuard VPN!

Do you remember that this is a UDP broadcast, sent on all connected subnets? The same host has a different IP address for each connected subnet. Therefore, even in the expected, supported use-case without WireGuard, the IP address in the scan result is only right for one subnet. All other subnets receive an IP address they probably cannot connect to. And this isn't such a rare situation: Every time you provide a hotspot with your device, you have two IP address because you connect to two subnets: The one towards the Internet and the one towards all devices hanging on your hotspot. In such a situation you just need to hope that the game picks the right IP address. What great software engineering...

The Script you've been Waiting for

1. Install scapy with sudo apt update && sudo apt install python3-scapy.
2. Copy this script into udp_broadcast_relay.py.
3. Adjust the IP addresses.
4. Run chmod +x udp_broadcast_relay.py.
5. Run sudo ./udp_broadcast_relay.py.
6. Open the game and host/join a LAN lobby.
7. Enjoy!

#!/usr/bin/env python3

from scapy.all import *
import socket

# TODO: Adjust these to your network:
# This might not work if you're connected to multiple subnets.
LOCAL_PHYSICAL_IP = "192.168.188.49"
LOCAL_TUNNEL_IP = "10.13.13.2"
REMOTE_TUNNEL_IPS = ["10.13.13.3", "10.13.13.4", "10.13.13.5"]
GAME_SPORT = 4200
GAME_DPORT = 4200

# SOCK_RAW requires CAP_NET_RAW or root.
sock = socket.socket(socket.AF_INET, socket.SOCK_RAW, socket.IPPROTO_UDP)

while True:
    # Receive original datagram.
    data, addr = sock.recvfrom(65535)
    packet = IP(data)
    if  packet.src != LOCAL_PHYSICAL_IP or \
        packet.dst != "255.255.255.255" or \
        packet[UDP].sport != GAME_SPORT or \
        packet[UDP].dport != GAME_DPORT:
        continue

    udp_payload = bytes(packet[UDP].payload)
    print(f"Received broadcast: {udp_payload.hex()}")

    # Replace the local IP with the tunnel IP inside the payload.
    local_physical_ip_reversed_network_byte_order = socket.inet_aton(LOCAL_PHYSICAL_IP)[::-1]
    local_tunnel_ip_reversed_network_byte_order = socket.inet_aton(LOCAL_TUNNEL_IP)[::-1]
    patched_udp_payload = udp_payload.replace(
        local_physical_ip_reversed_network_byte_order,
        local_tunnel_ip_reversed_network_byte_order
    )
    print(f" Patched broadcast: {patched_udp_payload.hex()}")

    # Send patched datagram to all remote hosts through the tunnel.
    tunnel_datagram = UDP(dport=GAME_DPORT, sport=GAME_SPORT) / patched_udp_payload
    for remote_tunnel_ip in REMOTE_TUNNEL_IPS:
        sock.sendto(bytes(tunnel_datagram), (remote_tunnel_ip, GAME_SPORT))

PS: This script should work for games with similar LAN co-op, too.
